Sliding Mitre Saw
TC-SM 2131/2 Dual
Item no:4300390EAN: 4006825644883
einhell-classic-sliding-mitre-saw-4300390-productimage-001

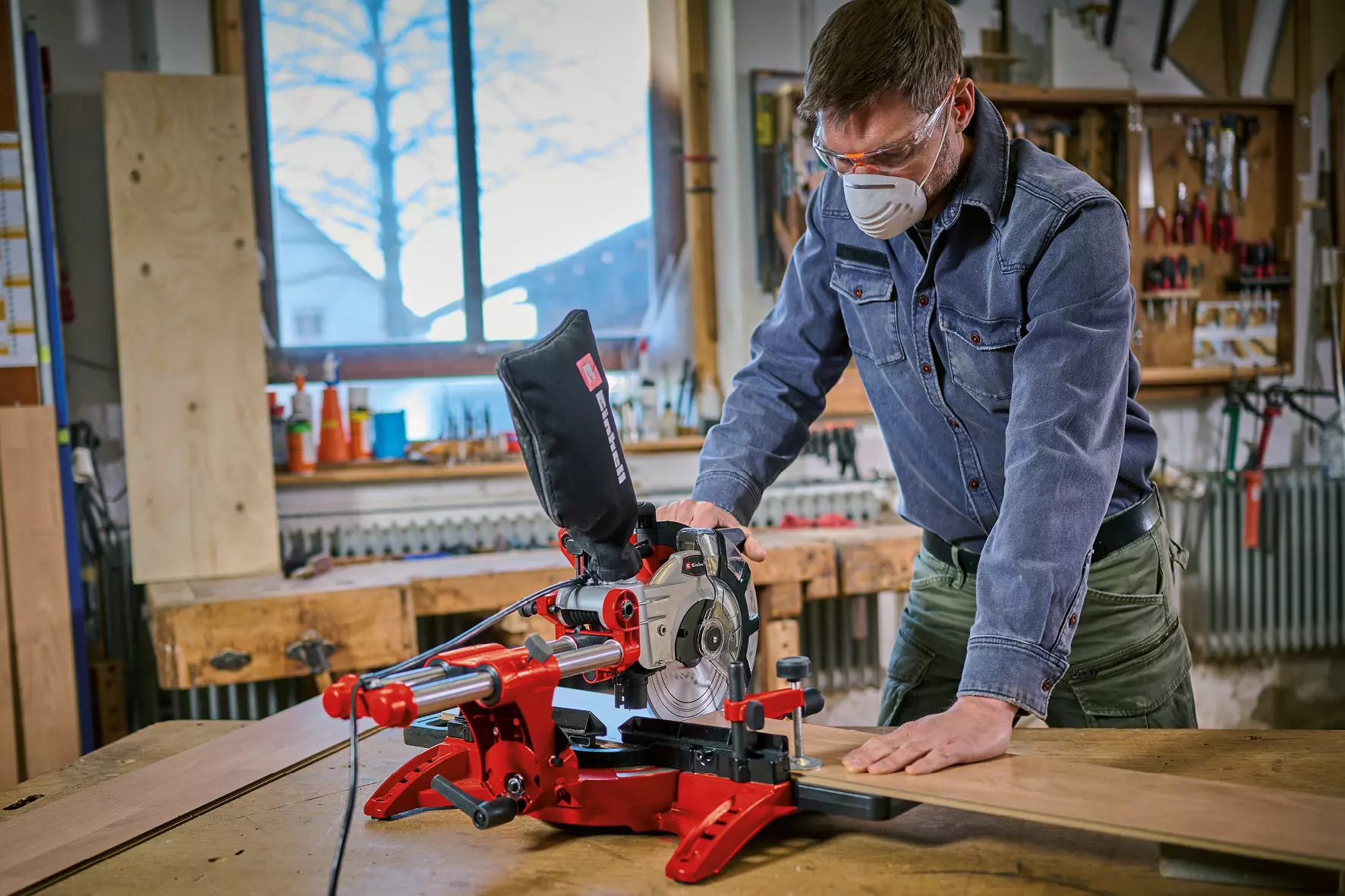

einhell-classic-sliding-mitre-saw-4300390-example_usage-001
einhell-classic-sliding-mitre-saw-4300390-detail_image-001
einhell-classic-sliding-mitre-saw-4300390-detail_image-002
einhell-classic-sliding-mitre-saw-4300390-detail_image-003
einhell-classic-sliding-mitre-saw-4300390-detail_image-003
einhell-classic-sliding-mitre-saw-4300390-detail_image-004
einhell-classic-sliding-mitre-saw-4300390-detail_image-005
einhell-classic-sliding-mitre-saw-4300390-productimage-001
einhell-classic-sliding-mitre-saw-4300390-example_usage-001
einhell-classic-sliding-mitre-saw-4300390-detail_image-001
einhell-classic-sliding-mitre-saw-4300390-detail_image-002
einhell-classic-sliding-mitre-saw-4300390-detail_image-003
einhell-classic-sliding-mitre-saw-4300390-detail_image-003
einhell-classic-sliding-mitre-saw-4300390-detail_image-004
einhell-classic-sliding-mitre-saw-4300390-detail_image-005
Sliding Mitre Saw

TC-SM 2131/2 Dual

Item no: 4300390 EAN: 4006825644883
  • Integrated drag function for wide workpieces
  • Turntable with precise angle setting for angular cuts
  • Saw head tilts to the left and right for mitre cutting
  • Includes laser (mains-powered) for precise guidance while cutting
  • Supports for sawing long workpieces on both sides
  • Workpiece stop with rails adjustable to the left and right
  • High-grade carbide-tipped precision saw blade
  • Clamping device for holding the workpiece securely in position
  • Includes sawdust bag to keep the workplace clean
  • Dust funnel behind saw blade to remove sawdust more effectively
See more information
Show less information
einhell-classic-sliding-mitre-saw-4300390-productimage-001
Article description

The TC-SM 2131/2 Dual is a drag, crosscut and mitre saw for cutting wood, laminated panels and plastic. The saw head can be tilted continuously to the left and right for high flexibility in setting mitres on two sides. An integrated, mains-powered laser marks the cutting line, enabling the workpiece to be positioned quickly and exactly. The high-quality turntable of the TC-SM 2131/2 Dual comes with an exact angle adjustment facility for angular cuts which can be latched single handedly in various positions. The integrated drag function enables you to cut particularly wide workpieces. Workpiece supports on two sides, a clamping device for reliable securing of the workpiece and a workpiece stop with rails that adjust to the left and right enable safe, precise operation. The table insert is equipped with a practical scale for reading off the workpiece width. The high-grade carbide-tipped precision saw blade guarantees clean, powerful cutting results. The sawdust bag keeps the workplace clean, while the dust funnel behind the saw blade is another big step up in the effectiveness of sawdust removal. A transport brace is provided for easy and safe mobility.

See more information
Show less information

Technical details

Cutting depth 45° x 45°36 mm
Cutting depth 90° x 90°62 mm
Cutting width 45° x 45°210 mm
Cutting width 90° x 90°310 mm
Idle speed max.4900 min^-1
Max. swivel range (saw head)45 °
Max. swivel range (saw table)47 °
Min. swivel range (saw head)45 °
Min. swivel range (saw table)47 °
Number of saw blade 1 teeth48 pcs
Product weight11 Kg
Saw blade 1 diameter210 mm
Saw blade holder diameter30 mm

Compact & handy design – powerful & flexible when working

The Einhell pull-cut mitre saw TC-SM 2131/2 Dual is equipped with a high-quality carbide saw blade and a 1800-watt motor: Precise and demanding cutting work is therefore no problem! Extendable workpiece supports on the left and right provide support when working with wider workpieces. The saw blade can be changed easily thanks to the easily accessible spindle lock. The mitre saw can be transported safely with the help of the transport lock.

Compact--handy-design--powerful--flexible-when-working
Flexible-in-any-position

Flexible in any position

The saw head can be tilted left & right: Heavy workpieces do not have to be rotated and can be flexibly machined from any position.

Just-do-it-yourself

Just do it yourself!

The sturdy, high-quality die-cast aluminium turntable has locking positions for the most common angles for DIY work.

Precise-in-every-situation

Precise in every situation

The mains-powered laser marks the cutting line: This means that the workpiece can be positioned where the cut is to be made.

Free-of-dust-and-chips

Free of dust and chips

The chip collection sack ensures a dust- and chip-free workplace, while the dust collection funnel also significantly improves sawdust removal.

Planning extensive sawing work? We have just the thing!

The TC-SM 2131/2 Dual is a pull-cut mitre saw for working with wood, coated panels and plastics. Thanks to the integrated pull function, even particularly wide workpieces can be cut effortlessly. A clamping device fixes the workpiece for your safety.

Einhell customer service can be reached directly. We take care of your requests for product information, spare parts and repairs.We support you with all questions around your product - before, during and after the purchase.
