Stationary Planer

TC-SP 204/1

Item no:4419957EAN: 4006825670943

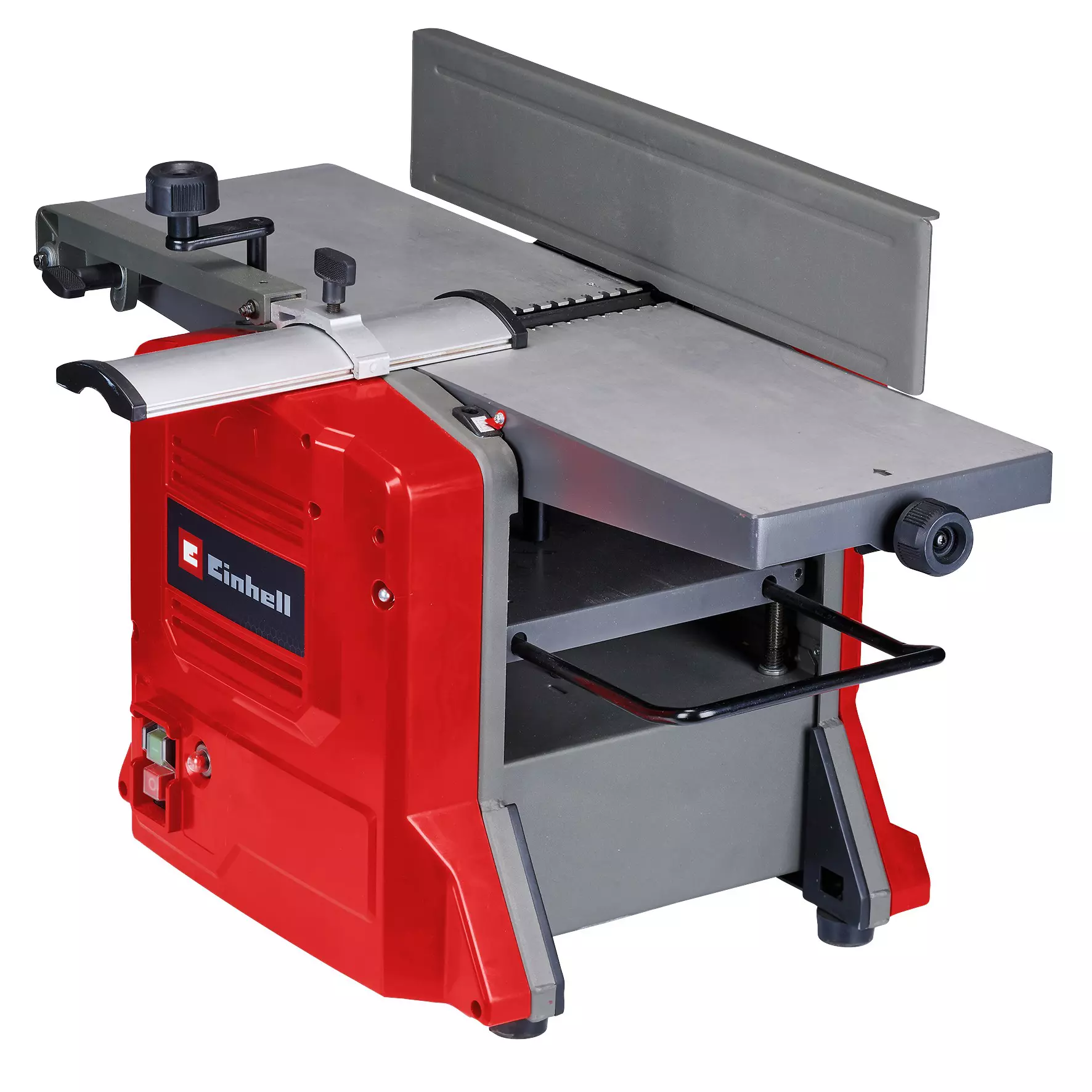

einhell-classic-stationary-planer-4419957-productimage-001

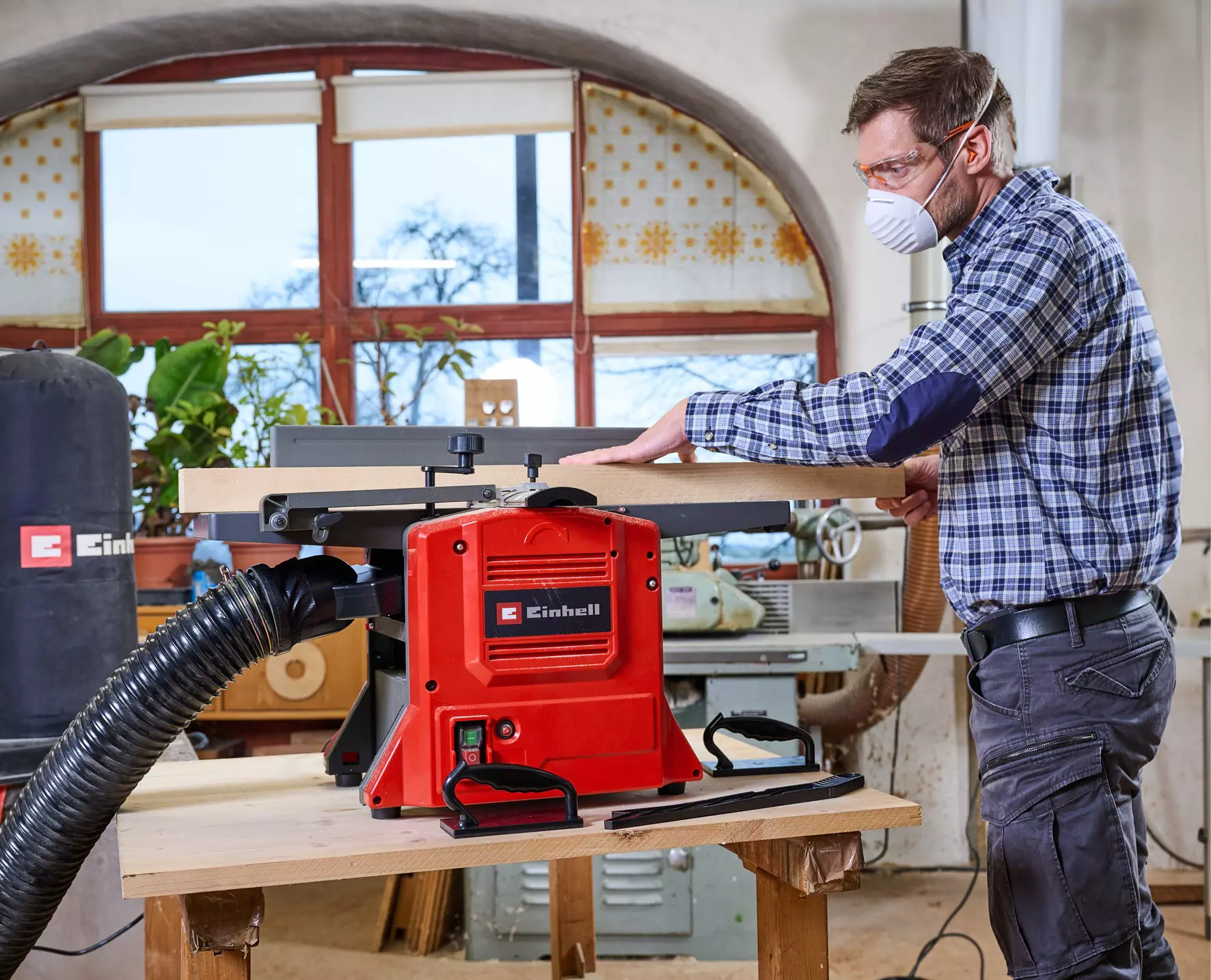

einhell-classic-stationary-planer-4419957-example_usage-001

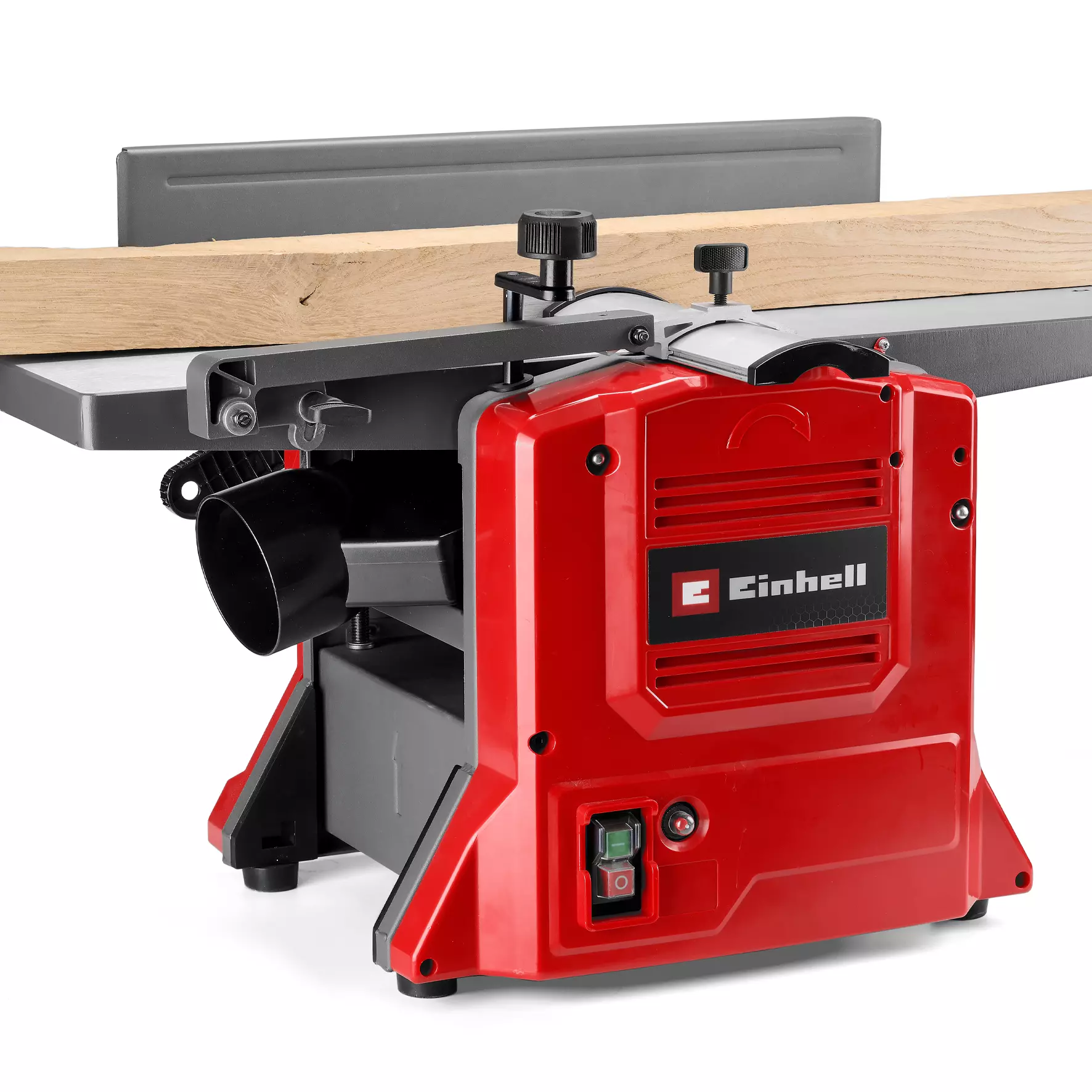

einhell-classic-stationary-planer-4419957-detail_image-001

einhell-classic-stationary-planer-4419957-detail_image-002

Stationary Planer

TC-SP 204/1

Item no: 4419957 EAN: 4006825670943

Robust, solid construction
Extremely powerful motor for processing all types of wood
Precise dressing tables made of aluminium for exact results
Guide rail on the dressing table can be tilted up to 45°
Material removal up to 3 mm easily adjustable
Thickness planer with workpiece support
Two long-life planing knives for precise planing
Suction adapter (Ø 100 mm) for connecting an vacuum cleaner
Vibration-damping feet for a safe, steady stand
Restart protection for safe operation

See more information

Show less information

Compare product

Dealers on site

Postcode or city

Article description

The Einhell planer TC-SP 204/1 is a high-quality machine for precise, rapid thickness planing and dressing. The 1500 watt motor offers sufficient power for all types of wood. The thicknesser with extendable workpiece support and a fast, automatic feed rate of max. 6 m/min is easy to handle. The height adjustment is easy for a maximum material removal of 3 mm when dressing and 2 mm when thickness planing. The planer is equipped with two durable planer blades for precise planing. With an opening height of up to 120 mm and an opening width of 204 mm, the planer is suitable for machining boards, strips or smaller beams. The practical chip extraction system ensures a clean workplace. The stationary planer TC-SP 204/1 is a robust, solid construction, the planing table of which is made of sturdy aluminium and provided with an inclinable stop. Vibration-damping feet provide the necessary stability. The planer also has an overload switch and a zero voltage switch, which prevents the machine from unintentionally starting up after a power failure.

See more information

Show less information

Technical details

Max. removal	3 mm
Max. tilt angle rip fence	45 °
Outlet height	120 mm
Outlet width	204 mm
Product weight	22.91 Kg
Suction adapter diameter	100 mm

Powerful performance

Compact, powerful planer

With its extremely high output of 1500 watts, the Einhell TC-SP 204/1 planer is a must-have in any workshop. Powerful yet compact and portable, the machine is a real addition to any do-it-yourselfer who likes to work with wood. The two durable planing knives plan efficiently and precisely, while the sturdy, planed aluminium worktable allows for clean results.

Rip fences

The rip fence helps to plan the wood evenly. It can also be tilted 45°.

Dust extraction

The suction adapter (Ø 100 mm) is suitable, depending on the application, for connecting a suction device or as a chip ejector.

Stability

The vibration-damped feet ensure a secure stand of the stationary planer at all times.

No more cable chaos

With the help of the integrated cable winder, the power cable can be neatly stowed away for transporting the machine.

Precise dressing

With max. 3 mm of removal, beams and boards can be machined on the sturdy aluminium dressing table with integrated stop. The protective cover of the planer blades can be optimally adapted to the width of the workpiece.

Efficient Thicknessing

The maximum removal can be set for thickness planing up to 2 mm. With an opening width of 204 mm, an opening height of 120 mm and extendable workpiece supports, the planer is suitable for thickness planing of boards and smaller beams.

Straighten beams and boards

With the help of the integrated dressing function, curved or unevenly thick strips, boards and beams can be straightened, i.e. planar surfaces can be created.

Plan to desired thickness

The beam is still too wide? Using the thickness planing function, the wood is automatically guided through the machine and planed to the desired thickness.
